Infrared catalytic combustion can enable the fuel to achieve complete combustion at a lower temperature. It plays an extremely important role in improving the combustion process, reducing reaction temperature, promoting complete combustion, and inhibiting the formation of toxic and harmful substances. Its application field has been expanding and has been widely used in many neighborhoods of industrial production and daily production.
The infrared catalytic wavelength is 2.5-9 μ m, matching the best infrared wavelength absorption peak (3-4 μ m) of organic materials such as water, polyester, epoxy resin, ABS, etc., so the infrared energy is easily and evenly absorbed.
Product characteristics
High efficiency: infrared catalytic heating directly heats objects through infrared radiation, without heating the surrounding air. The energy utilization rate is high, and 80% - 90% of the infrared energy generated will be absorbed by the organic coating, which is 5-20% more efficient than ordinary infrared burners.
Energy saving: the combustion efficiency is more than 99%, and the gas consumption is small.
Safety: catalytic combustion belongs to low-temperature flameless combustion, with full combustion, no open flame and high safety
Fast heating speed: the infrared catalytic heating has strong penetration, can be directly absorbed by the object, and can heat the object evenly, quickly and with high quality.
Time saving: When catalytic combustion is used to dry objects, shorter drying passages and less heating power are required, which is only 1/3 of the length of the traditional hot air circulation convection heating drying passage, which can effectively improve efficiency and save time.
Environmental protection: no harmful gas is produced during combustion, only oxygen and water vapor are produced, which is very environmentally friendly.

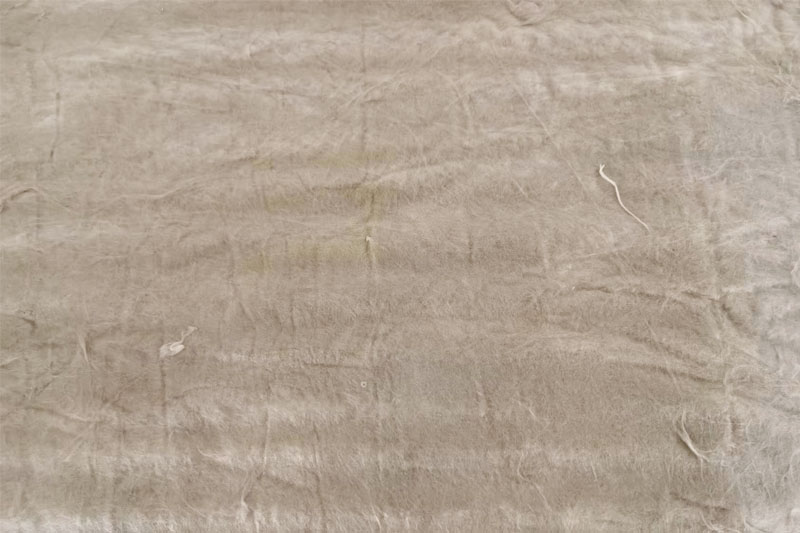

Specification table of catalytic combustion cotton
| Output model | Power(KW) | Rated air consumption | wide(W) | long(L) | Thick(H) |
| PTZ303 | 1 | 0.13 | 300 | 300 | 550 |
| PTZ306 | 1 | 0.04 | 300 | 600 | 550 |
| PTZ309 | 2 | 0.36 | 300 | 900 | 550 |
| PTZ312 | 2 | 0.48 | 300 | 120 | 550 |
| PTZ318 | 2.2 | 0.72 | 300 | 1800 | 550 |
| PTZ606 | 2.2 | 0.48 | 600 | 600 | 550 |
| PTZ609 | 2.2 | 0.72 | 600 | 900 | 550 |
| PTZ612 | 2.2 | 0.96 | 600 | 1200 | 550 |
| PTZ615 | 2.2 | 1.2 | 600 | 1500 | 550 |
| PTZ618 | 2.2 | 1.44 | 600 | 1800 | 550 |
Scope of application
◆ Preheating based on solvent and water-based paint drying powder coating curing
◆ Hot forming
◆ Insulation paint drying
◆ Glass paint drying (such as decoration and mirror image process)
◆ Textile treatment (such as screen printing, thermosetting, non-woven fabric drying)
◆ Furniture (such as paint drying and powder curing on MDF and HDF)
◆ Food industry (baking, dehydration of plant products)
◆ Dry ink on paper or other substrates, thermal stability of organic products
◆ Oil and gas application (hose, work site and instrument heating in petrochemical industry)
